1 gallon
MD-101
For repairs, touch-ups, and smaller jobs on unsealed wood.
Coverage Approx. 125 sq. ft.
Product information
Premium Flooring
DeckRite is a three-ply reinforced vinyl membrane: an embossed wear layer, a high-strength polyester reinforcement grid, and a solid vinyl bonding layer. Finish thickness is 50 mils and 60 mils. The wear layer is a durable embossed vinyl surface; the polyester grid adds dimensional stability and tear resistance; the bonding layer is solid vinyl engineered to adhere to the substrate.

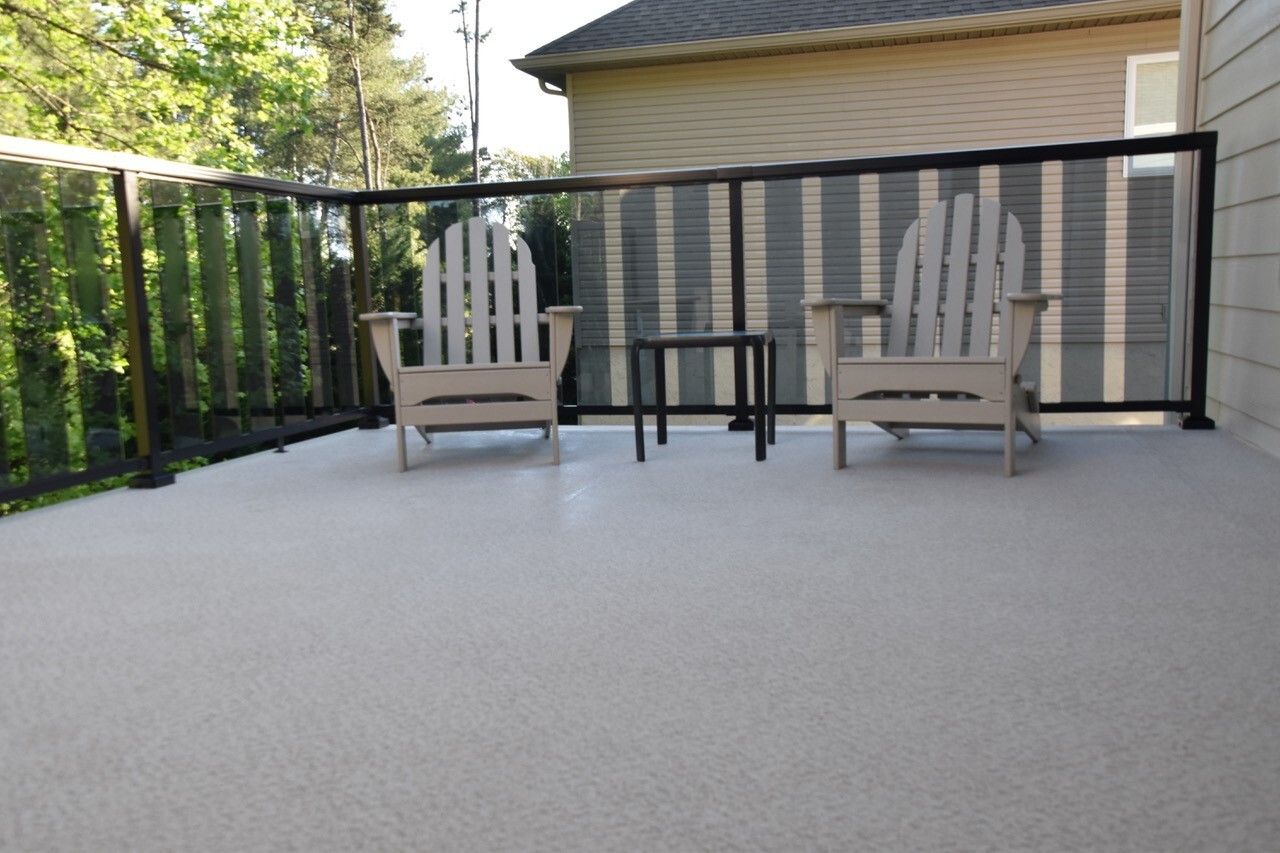

DeckRite 500 Series, 50 mil
The 500 Series uses the same three-ply reinforced vinyl construction as the 600 Series in a 50 mil thickness. It is a popular alternative to high-maintenance wood decks and concrete patios, and installs over existing or new decks, walkways, balconies, docks, and sun porches.
7-year limited manufacturer warranty against defects in material (50 mil). Installing contractor typically provides a 2-year workmanship warranty.
- Thickness
- 0.050 inches (50 mils)
- Colors
- Sahara Tan, Slate Gray, Gray Storm, Tropical Cream, Lakewood Marble, Tuscany Sand
- Weld thickness
- Approximately 0.090 inches at the hot-air weld
- Width
- 68 inches (1.72 m)
- Length
- 90 feet (27.45 m) per roll
- Construction
- Embossed wear layer, polyester reinforcement grid, solid vinyl bonding layer
- Slip resistance
- Meets ADA slip-coefficient requirements on a flat surface
- Seaming
- 1 to 1-1/2 inch overlap, hot-air welded

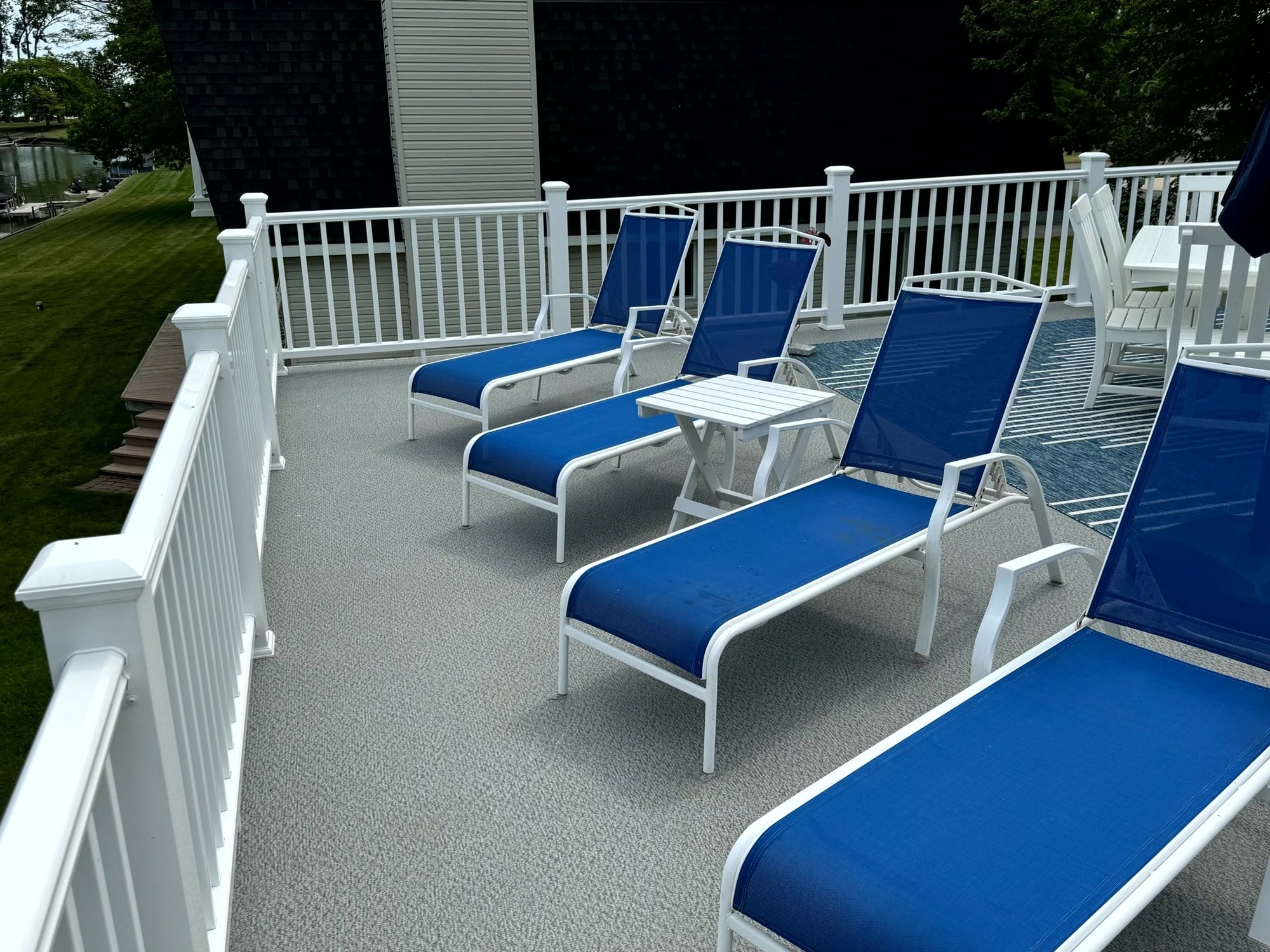

DeckRite 600 Series, 60 mil
DeckRite is a three-ply reinforced vinyl membrane: an embossed wear layer, a high-strength polyester reinforcement grid, and a solid vinyl bonding layer. The 600 Series is 60 mils thick and is used for high-traffic commercial properties such as hotels, retirement communities, condominiums, apartments, and similar applications.
10-year limited manufacturer warranty against defects in material (60 mil). Installing contractor typically provides a 2-year workmanship warranty.
- Thickness
- 0.060 inches (60 mils)
- Colors
- Slate Gray, Sahara Tan, Gray Storm, Riverstone, Harvest
- Weld thickness
- Approximately 0.110 inches at the hot-air weld
- Width
- 68 inches (1.72 m)
- Length
- 90 feet (27.45 m) per roll
- Construction
- Embossed wear layer, polyester reinforcement grid, solid vinyl bonding layer
- Slip resistance
- Meets ADA slip-coefficient requirements on a flat surface
- Seaming
- 1 to 1-1/2 inch overlap, hot-air welded
Adhesives and Accessories
Every DeckRite installation starts with the right adhesive. Water-based adhesive is used on unsealed wood; solvent-based adhesive is used on concrete or sealed wood. Seams are hot-air welded on a 1 to 1-1/2 inch overlap with no adhesive in the weld zone. Termination, drip edge, and substrate details follow the manufacturer installation instructions.
System components are specified with the membrane manufacturer’s installation instructions.
IMPORTANT: If the recommended DeckRite adhesive is not used, ensure the alternative adhesive is PVC-compatible to prevent adverse effects on the appearance, adhesion, and performance of the vinyl.
Adhesives
DeckRite Adhesives
Use water-based adhesive on unsealed wood. Use solvent-based adhesive on concrete or sealed wood.
Water-based
View SDSUnsealed wood. One coat on the substrate
3 gallon
42022WB
For unsealed plywood and pressure-treated wood.
Coverage Approx. 375 sq. ft.
Solvent-based
View SDSConcrete or sealed wood. Coat the vinyl backing and the substrate
1 gallon
MD-102
For repairs and smaller jobs on concrete or sealed wood.
Coverage Approx. 50–60 sq. ft.
Low VOC compliant
5 gallon
42011LV
For larger jobs on concrete or sealed wood.
Coverage Approx. 250–300 sq. ft.
Low VOC compliant
Accessories
Inside and outside corners are made to match the membrane color. The Slate Gray pieces shown here are examples only.
-

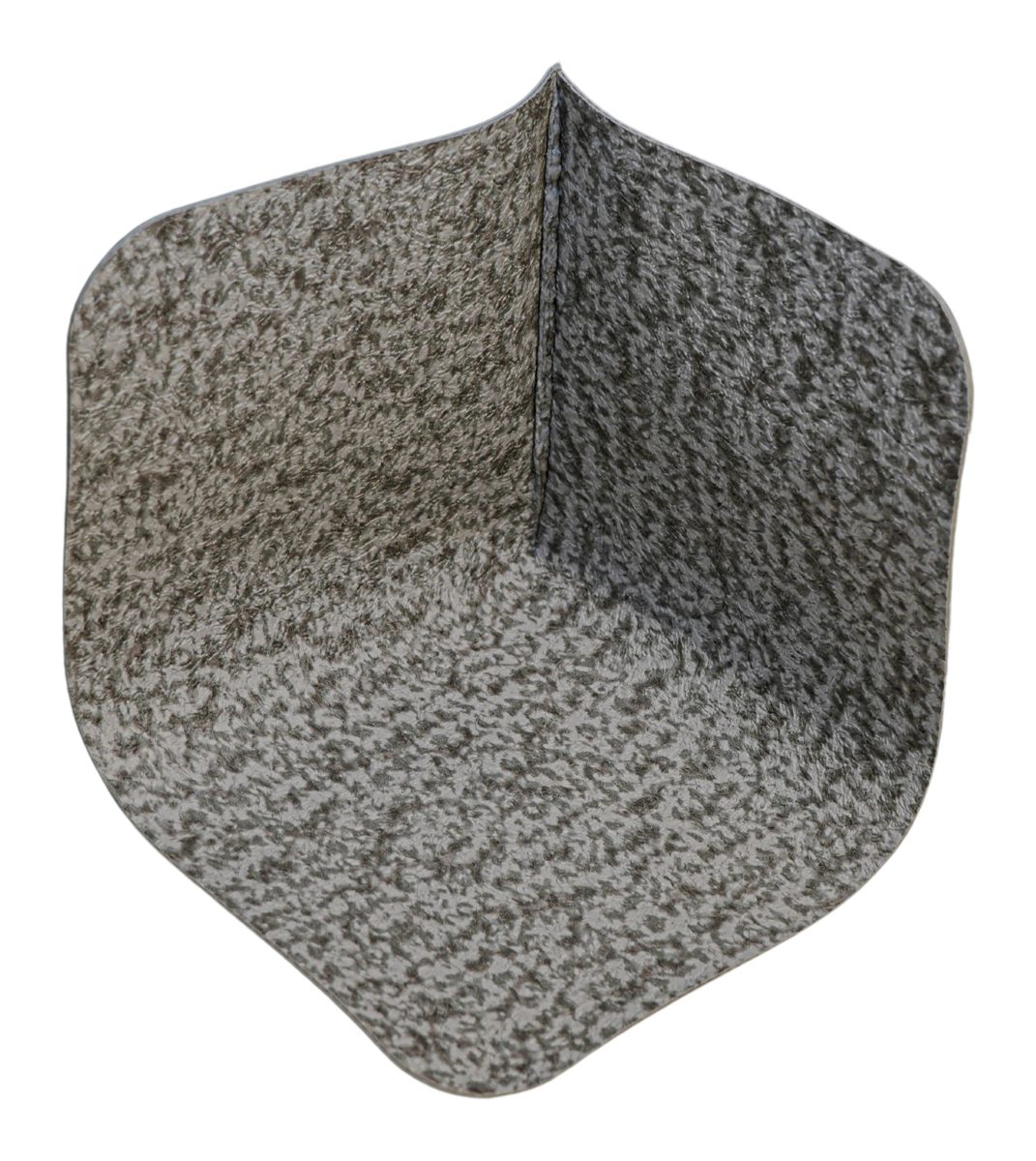

Inside Corner
DR-114 Inside / Outside Corner Detail -

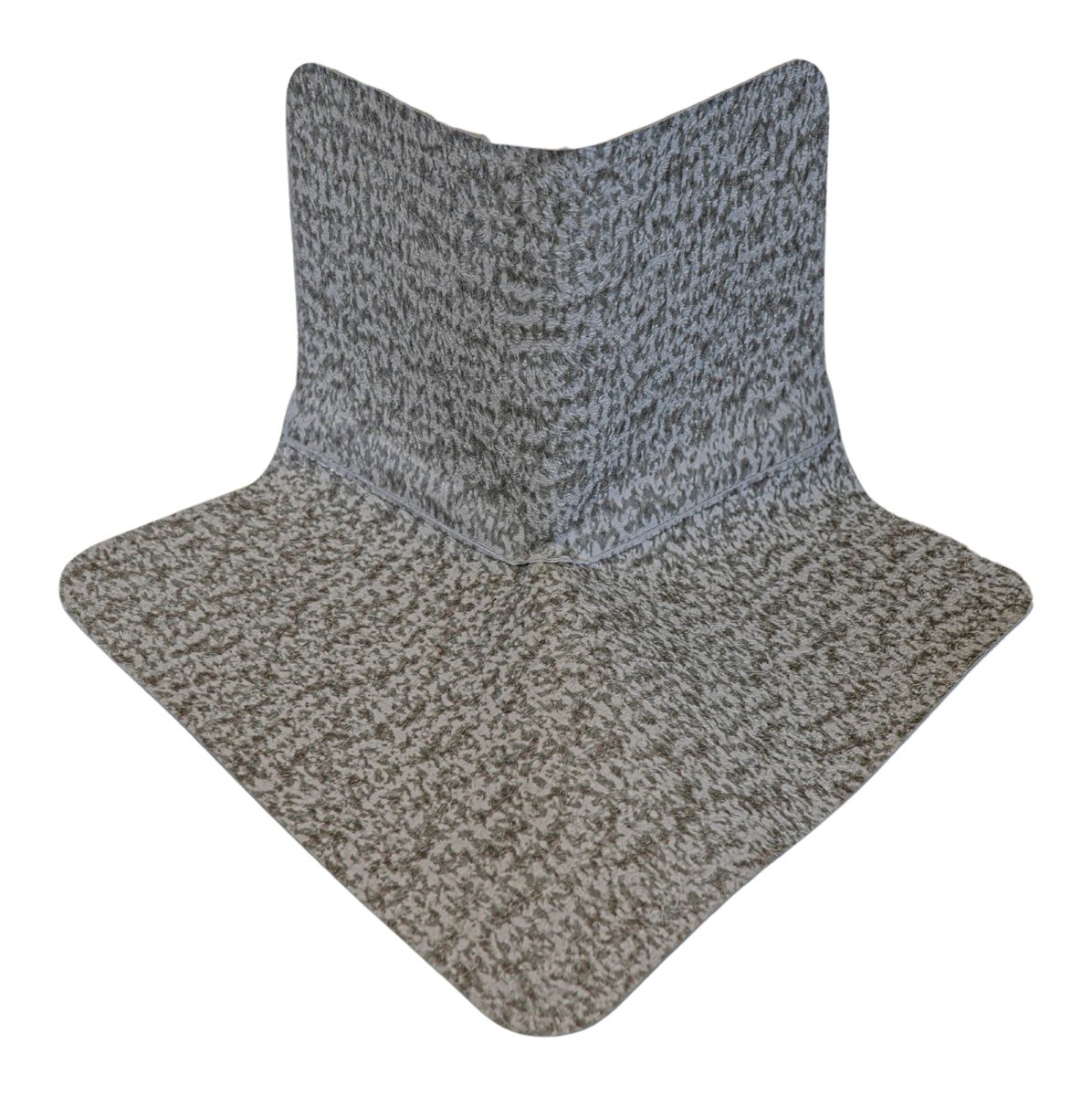

Outside Corner & Post Wrap
DR-114 Inside / Outside Corner Detail DR-115 Inset Post Wrap Detail DR-116 Edge Post Wrap Detail -

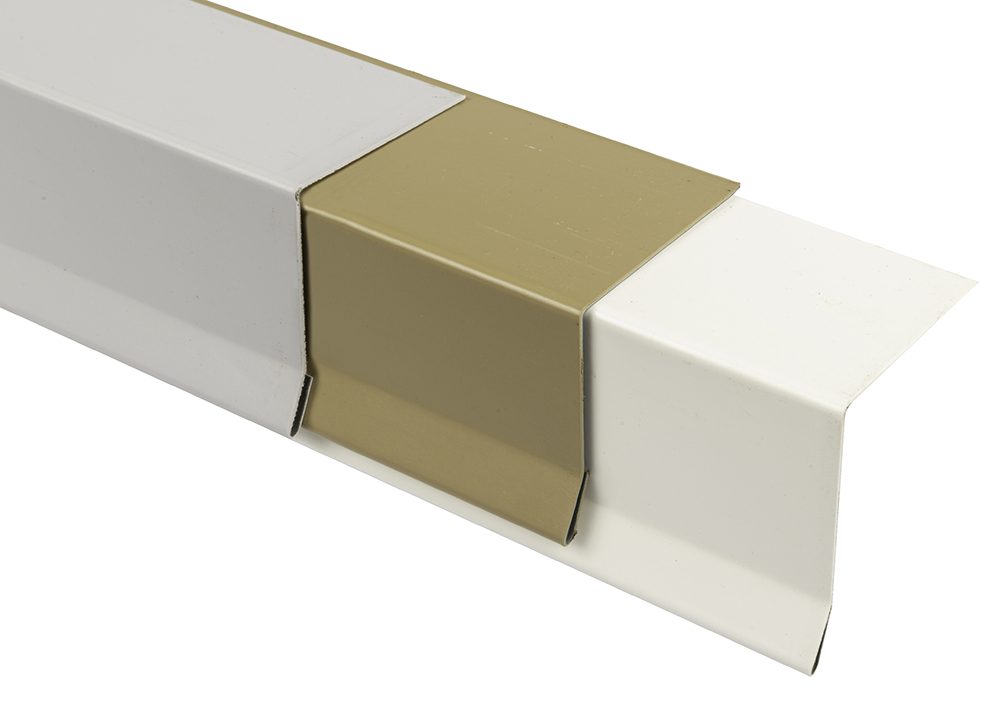

Drip Edge
DR-109 Coated Metal Drip Edge -
Termination Bar
DR-101 Edge Termination Detail -

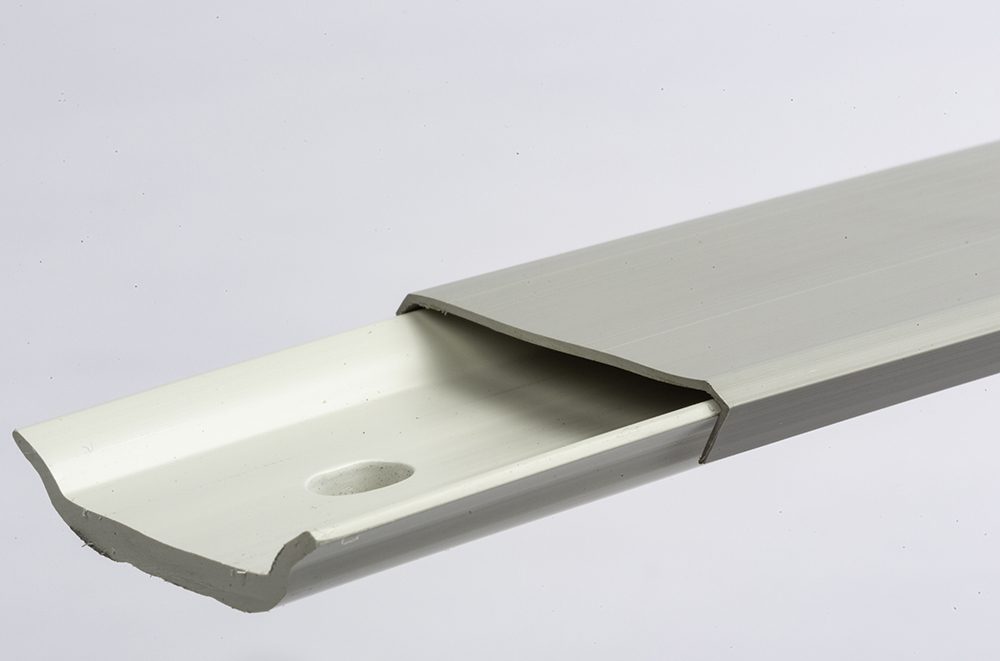

Fascia Bar and Cover
DR-103 Compression Bar with Cover -
PVC Coated Sheet Metal
PVC Coated Sheet Metal data sheet

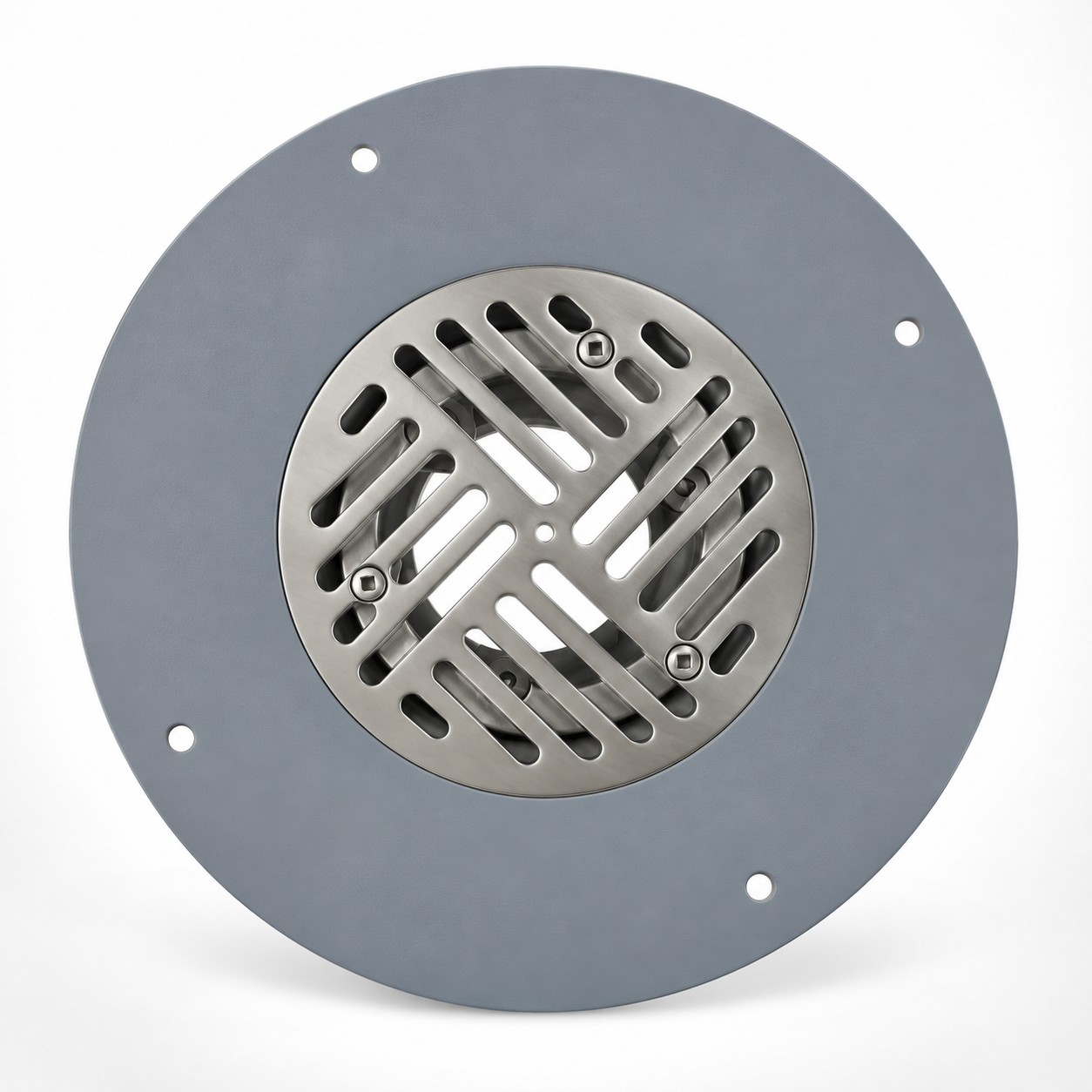

PVC Coated Drain

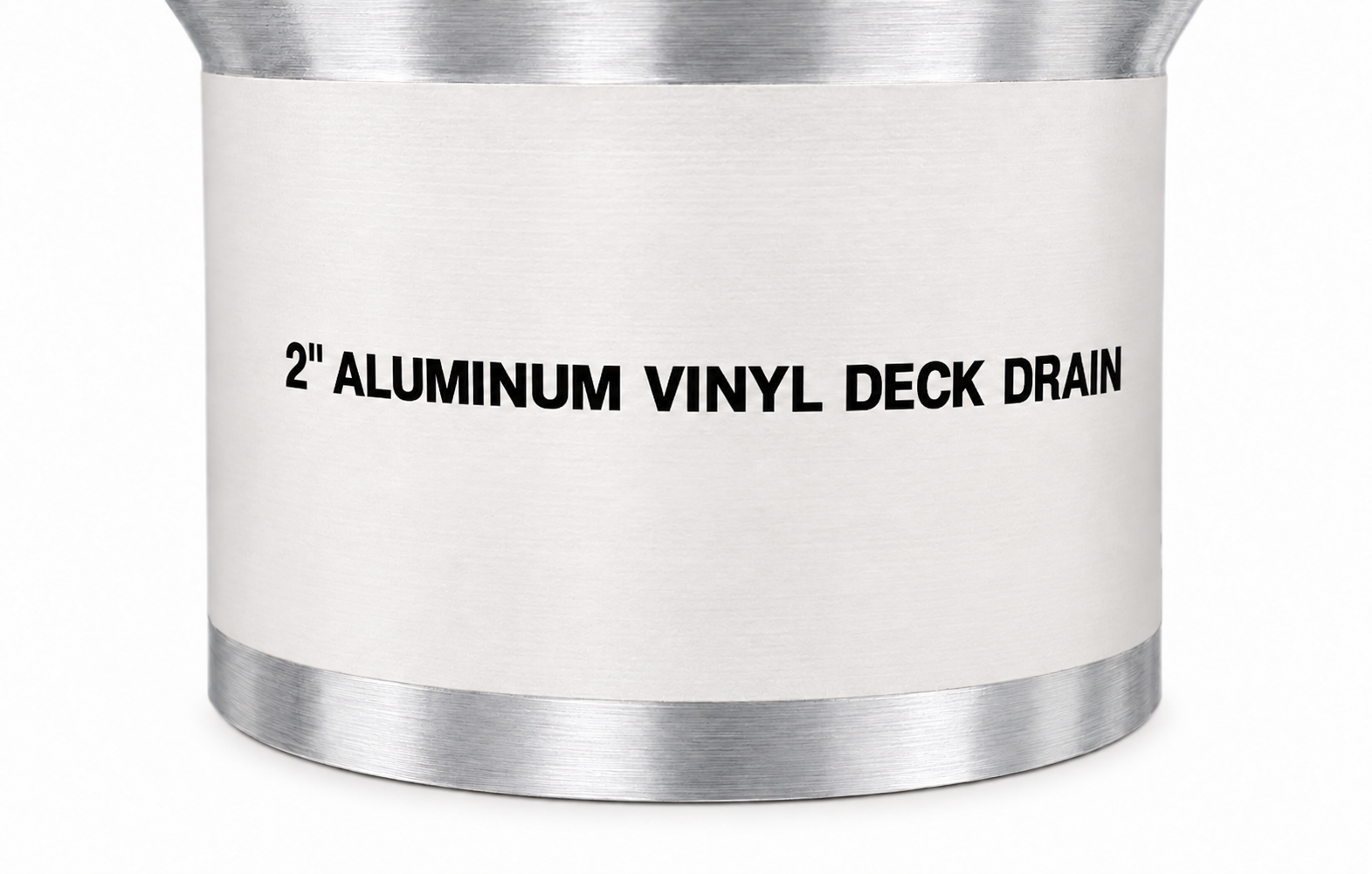

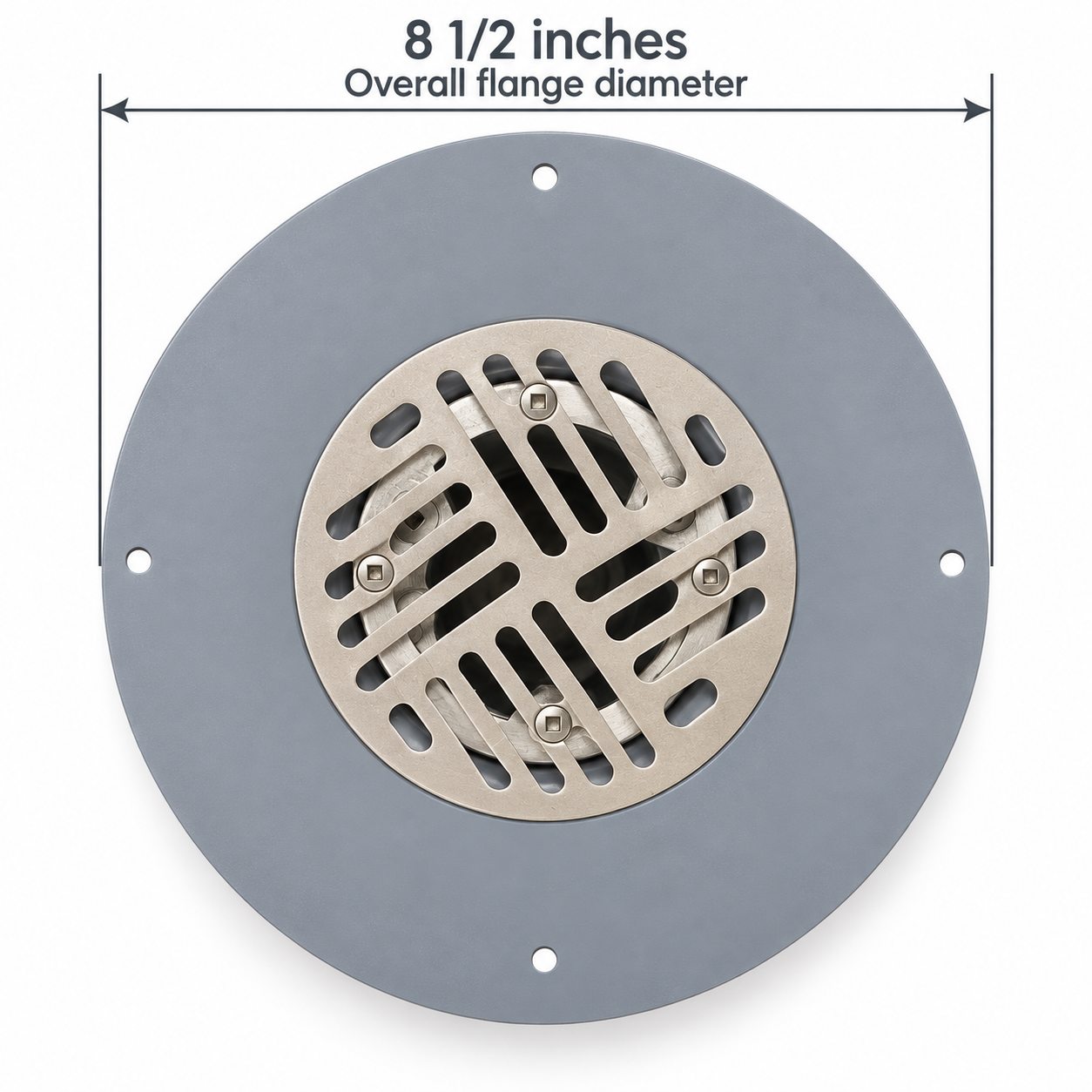

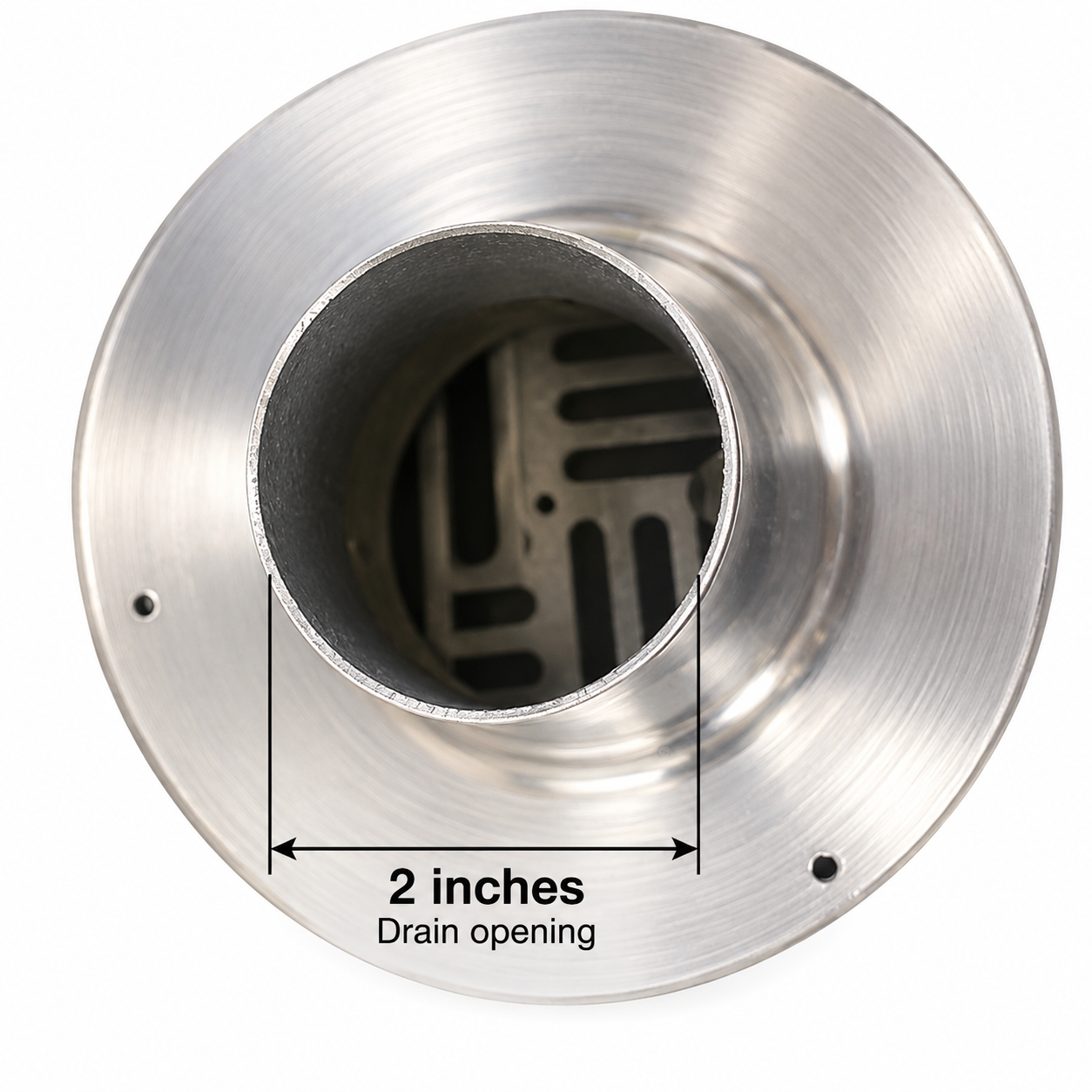

2" aluminum vinyl deck drain. 8 1/2" overall flange diameter, 2" drain opening.
Commercial roofing
Commercial Roofing Accessories
Walk tread and coated metals for commercial roofing. These are separate from DeckRite decking accessories. TPO data sheets will be added when they are provided.
-
Gray

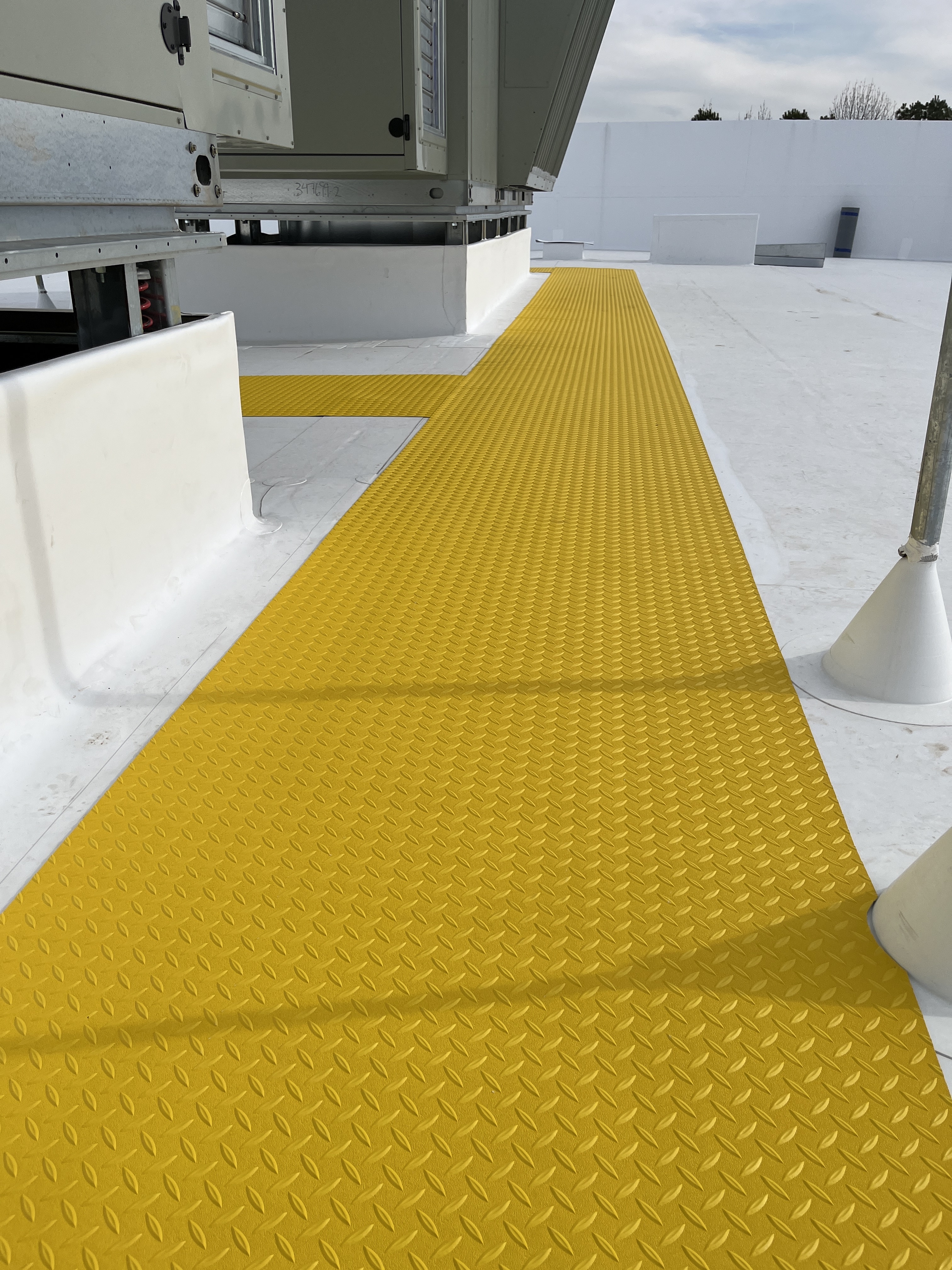

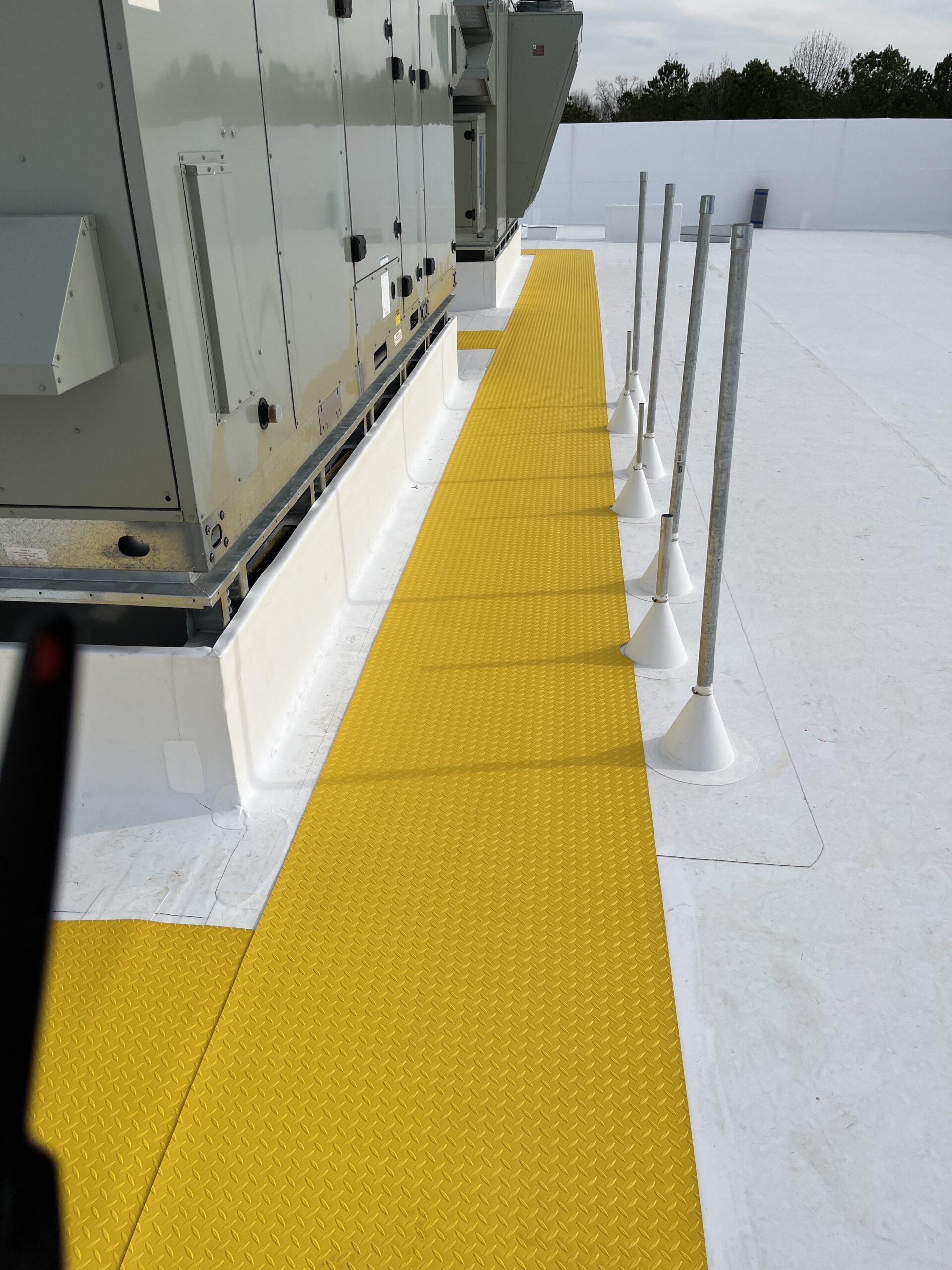

Yellow PVC ProGuard Walk Tread
Gray and Safety Yellow. Embossed walk tread for DeckRite PVC membranes ProGuard PVC Walk Tread data sheet -
Gray
Yellow TPO ProGuard Walk Tread
Gray and Safety Yellow. Embossed walk tread for TPO roofing. Data sheet coming soon Data sheet coming soon -

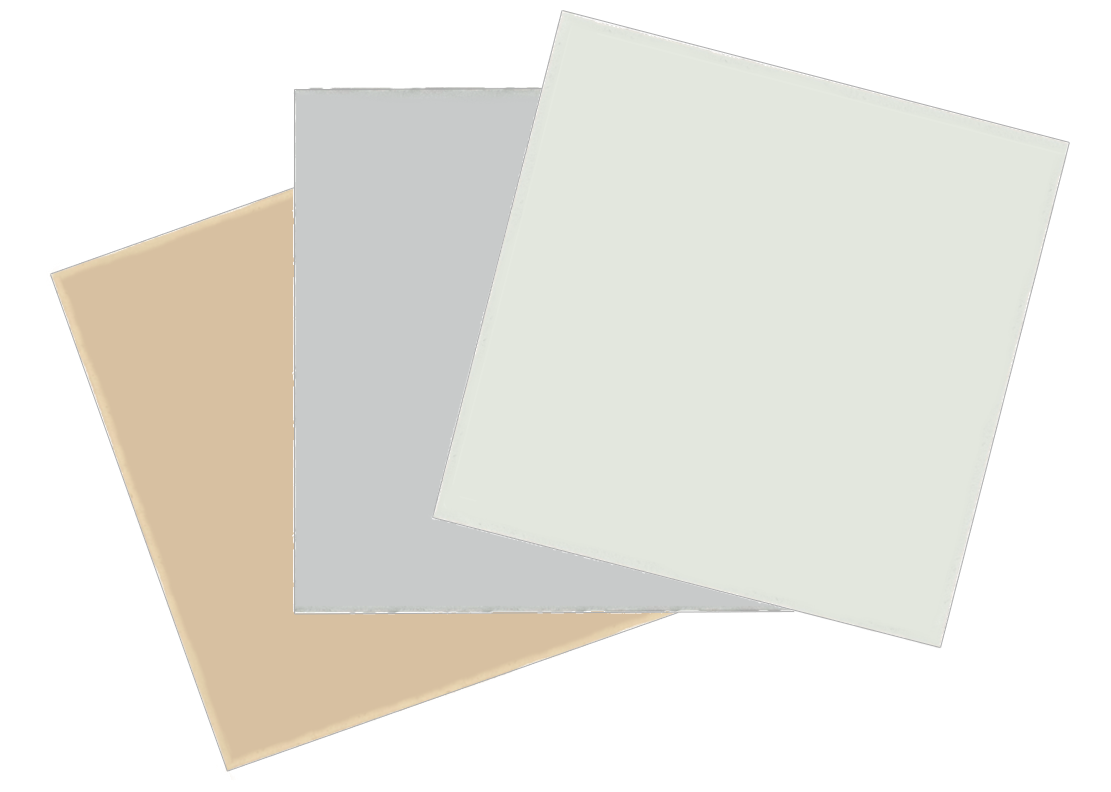

White, Gray, Tan PVC Coated Sheet Metal
White, Gray, and Tan. 4 ft × 10 ft heat-weldable coated metal sheets PVC Coated Sheet Metal data sheet -

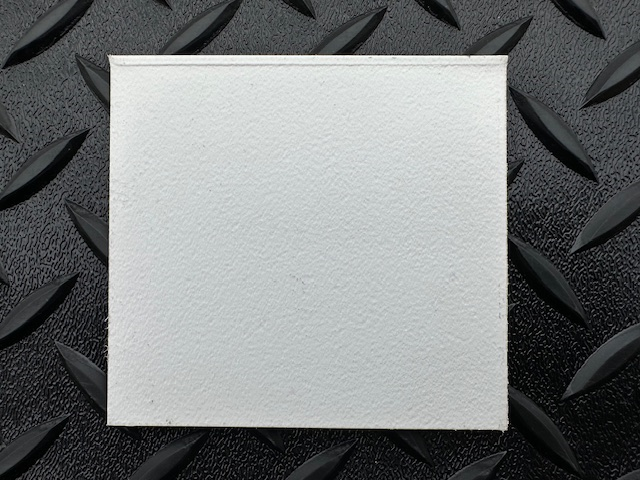

White TPO Coated Sheet Metal
White. 4 ft × 10 ft coated metal sheet. Data sheet coming soon Data sheet coming soon
Colors
Available colors
The 500 Series (50 mil) comes in Sahara Tan, Slate Gray, Gray Storm, Tropical Cream, Lakewood Marble, and Tuscany Sand.
The 600 Series (60 mil) comes in Slate Gray, Sahara Tan, Gray Storm, Riverstone, and Harvest.
Click any color for a large close-up of the membrane texture.
Because screens vary, DeckRite will mail free material samples. Send your mailing address from the Contact page.
Compare colors
See the membrane, not a fake overlay
Screens cannot paint vinyl onto a photo accurately. Pick any two DeckRite colors to see the real membrane textures side by side, then enlarge either one for a full-size close-up.
Color A
A deep, contemporary storm gray featuring subtle aggregate texture that pairs exceptionally with modern exteriors, stone, and dark accents.
Color B
A warm, sun-washed tan with a fine embossed texture that coordinates with cedar, brick, and traditional exteriors.
