CAD Drawings Installation and flashing details Corner Photos Inside and outside corner photos Data Sheets Product technical data Documents & Specs Specifications and downloads Technical Bulletins Important product guidance Physical Properties Test methods and results

Architectural CAD Library

Detailed Drawings & Flashing Specs

Engineered edge terminations, inside/outside corners, post wraps, drip edges, and drain flashings. Click any sheet to open the official high-resolution PDF document directly.

DR-101 Open Official PDF

Edge Termination Detail

System: Fully Adhered

Substrate edge termination showing membrane turned down outside fascia with mechanical fastening and drip edge trim.

Open Official PDF (DR-101) PDF

DR-102 Open Official PDF

Gutter Edge Detail

System: Fully Adhered

Perimeter edge water evacuation detail directing runoff directly into external eaves trough and gutter system.

Open Official PDF (DR-102) PDF

DR-103 Open Official PDF

Compression Bar with Cover

System: Fully Adhered

Surface-mounted termination bar compression flashing with counterflashing cover and elastomeric sealant bead.

Open Official PDF (DR-103) PDF

DR-104 Open Official PDF

Base Flashing

System: Fully Adhered

Wall-to-deck horizontal-to-vertical base transition ensuring a minimum 4" continuous upward waterproofing lap.

Open Official PDF (DR-104) PDF

DR-105 Open Official PDF

High Parapet Wall Flashing

System: Fully Adhered

Extended vertical flashing up parapet wall surface with coping cap termination for full moisture enclosure.

Open Official PDF (DR-105) PDF

DR-106 Open Official PDF

Typical Drain Flashing Detail

System: Fully Adhered

Substrate recessed deck drain flashing assembly with mechanical clamping ring and waterproof vinyl compression seal.

Open Official PDF (DR-106) PDF

Corner Photos

Inside & Outside Corner Details

Inside and outside corners match the membrane color. The Slate Gray pieces shown here are examples only. Open a photo for a closer look, or open the related detail drawings.

Photos of inside and outside corner pieces. Follow the 2026 installation instructions for folding, adhesive, and hot-air welding.

Installation instructions

Official Product Engineering Sheets

Technical Data

Current technical data sheets, architectural specifications, installation instructions, and safety data sheets. Click any card to preview or open the official PDF.

TDS-01 Accessories

PDF

ProGuard PVC Walk Tread

Heavy-duty textured slip-resistant walking tread for high-traffic paths and stairs

Roll Width:: 36 in. (0.91 m)
Roll Length:: 60 ft. (18.28 m)
Weight:: 8.79 oz/sq. ft.

Colors: Safety Yellow Gray

Full PDF

TDS-02 Flashing

PDF

PVC Coated Sheet Metal

Heat-weldable galvanized fabrication sheet for custom flashings and perimeter details

Sheet Size:: 4 ft x 10 ft (1.22 m x 3.05 m)
Base Metal:: 24-gauge hot-dipped galvanized Grade 90 steel
PVC Film:: 20-mil heat-weldable PVC laminate

Colors: Gray Tan White

Full PDF

TDS-03 Perimeter Edge

PDF

PVC Coated Drip Edge

Preformed heat-weldable perimeter drip flashing for fast, waterproof perimeter edge termination

Profile / Length:: 1-3/4 in. face x 2 in. deck flange x 10 ft stick
Base Metal:: 24-gauge hot-dipped galvanized Grade 90 steel
PVC Film:: 20-mil heat-weldable PVC coating

Colors: Gray Tan White

Full PDF

TDS-04 Accessories

PDF

PVC Coated Drain Insert

Weldable floor drain with mechanical membrane attachment

Overall Flange Diameter:: 8-1/2 in. (216 mm)
Finished Grate Diameter:: 4-3/4 in. (121 mm)
Overall Height:: 2-1/8 in. (54 mm)

Full PDF

Technical Data Sheet

Official PDF

Product Description & Scope

Construction & System Integration

Physical Properties & ASTM Test Standards

Property / Specification	Tested Result / Value	Standard / Reference

Application & Field Installation Requirements

DeckRite Technical Support • (888) 450-DECK (3325) • DeckRitesupport@deckrite.com

Download PDF

Architectural specs, installation, SDS & brochure

DeckRite Architectural Specifications preview

Architectural & Specs PDF

200 KB PDF

DeckRite Architectural Specifications

CSI Section 07185 Traffic Membrane specification for welded-seam PVC waterproofing on decks, balconies, walkways, stairs, patios, and courtyards.

Preview Full PDF

DeckRite Installation Instructions 2026 preview

Installation Guides PDF

203 KB PDF

DeckRite Installation Instructions 2026

Official installation procedure covering surface preparation, membrane layout, adhesive application, perimeter detailing, and hot-air welding.

Preview Full PDF

Water-Based Deck Adhesive Safety Data Sheet (SDS) preview

Technical Data PDF

381 KB PDF

Water-Based Deck Adhesive Safety Data Sheet (SDS)

Official OSHA / GHS Safety Data Sheet for DeckRite water-based substrate bonding adhesive formulation.

Preview Full PDF

Solvent-Based Deck Adhesive Safety Data Sheet (SDS) preview

Technical Data PDF

250 KB PDF

Solvent-Based Deck Adhesive Safety Data Sheet (SDS)

Official OSHA / GHS Safety Data Sheet for DeckRite solvent-based adhesive used for concrete, sealed wood, and vertical surfaces for material application.

Preview Full PDF

DeckRite 8.5x14 Legal Trifold Brochure preview

Warranty & Care PDF

876 KB PDF

DeckRite 8.5×14 Legal Trifold Brochure

Complete full-color legal trifold architectural brochure detailing residential & commercial applications, color patterns, and warranty.

Preview Full PDF

Engineering Advisories & Care

Technical Bulletins Library

Official maintenance guidelines, chemical compatibility ratings, weather limits, and field advisories directly from DeckRite Technical Services.

TB-001 Official Technical Bulletin

Care & Maintenance Guidelines

Routine cleaning and stain-removal guidance for DeckRite PVC membrane surfaces

Open Official PDF

Technical Scope & Advisory

DeckRite requires far less maintenance than a traditional wood deck, but routine cleaning helps prevent dirt, sap, leaf residue and stains from becoming embedded. Start with the mildest cleaning method and thoroughly rinse the membrane after every cleaner.

Regular Cleaning Procedure

Remove Loose Debris

Sweep or rinse away loose dirt, leaves, pine needles and other debris before washing.

Saturate and Apply Soap

Wet the DeckRite surface with clean water. Apply approximately 2-3 tablespoons of mild dish soap per 100 sq. ft.; warm water may be used.

Scrub Gently

Use a soft-bristled deck brush or sponge mop. Work the soap and water over the surface, adding water as needed. Avoid aggressive scraping.

Rinse Thoroughly

Rinse completely with clean water so no soap or cleaner residue remains. Repeat the process if needed.

Clean Regularly

Perform routine cleaning three to four times per year, or as needed, and before winter or other extended periods of limited use.

Cleaner Selection by Condition

Condition / Need	Recommended Cleaner	Application Instructions
Ground-in dirt or minor stains	Citrus-based cleaner	Apply to a clean, dry rag and gently dab the stain. Test first in an inconspicuous area, then rinse thoroughly.
Eco-friendly option	Simple Green	Spray the affected area, allow approximately 10 minutes of contact, wipe with a paper towel or soft cloth, and rinse.
Tougher stains	Spray Nine	Use as a non-bleaching option. Follow the product label, minimize contact time, test first, and rinse completely.
Last resort	Tilex or CLR	Use only if necessary. These products contain bleaching agents. Do not allow them to sit on the vinyl; rinse immediately. Extended contact may discolor or remove the printed pattern.

Recommended Practices

Begin with mild dish soap and water.
Test stronger cleaners in a concealed area.
Follow label directions and minimize contact time.
Rinse completely after every cleaner.
Contact DeckRite for stubborn or unusual stains.

What to Avoid

Allowing cleaners to dry or remain on the vinyl.
Using harsh or bleaching products for routine care.
Aggressive scraping or abrasive cleaning tools.
Mixing cleaners or cleaning chemicals.
Leaving sap, leaves or pine-needle residue in place.

IMPORTANT: Begin with the mildest method. Stronger or bleaching cleaners may alter the vinyl color or printed pattern. Always follow cleaner labels. Test first and contact DeckRite Technical Services for unusual stains or product-compatibility questions.

TB-002 Official Technical Bulletin

Verify Lot Numbers

Color-matching guidance for DeckRite PVC membrane installations

Open Official PDF

Technical Scope & Advisory

Every effort is made during manufacturing to match color batches from one production run to the next. However, even with computerized color-matching techniques, colors may vary slightly between production runs.

Regular Cleaning Procedure

Check Lot Numbers

Verify the lot numbers shown on the roll labels before installing material that will be used in adjacent areas.

Compare Adjacent Material

After verifying the lot number and before gluing the DeckRite membrane in place, compare the membrane color to adjacent material.

Lot Number and Color Check

Match the roll lot numbers and visually compare membrane color before gluing the material in place.

Recommended Practices

DeckRite will strive to ship rolls with the same lot number.
The installer must also check lot numbers before installation.
Compare adjacent membrane color before the membrane is glued down.

What to Avoid

Gluing the membrane before matching lot numbers and comparing color.
Assuming a distributor shipment contains matching lot numbers.

IMPORTANT: Match lot numbers and compare adjacent membrane color before gluing the DeckRite membrane in place. Color may vary slightly between production runs. Verify roll labels and adjacent material before installation; contact DeckRite Technical Services with questions.

TB-003 Official Technical Bulletin

Mildew / Algae Resistance

Outdoor resistance and routine cleaning guidance for DeckRite PVC membrane surfaces

Open Official PDF

Technical Scope & Advisory

DeckRite membranes are designed for outdoor use and are formulated to withstand exposure to the elements. The membrane contains a fungicide used in vinyl membranes to help prevent surface penetration of algae and/or mildew spores.

Regular Cleaning Procedure

Clean Periodically

Dirt and debris on the membrane surface can support mildew or algae growth, so clean the surface periodically.

Use Mild Soap and Water

Apply mild liquid dish soap with water and clean the surface using a soft-bristled scrub brush.

Rinse Thoroughly

Rinse the membrane thoroughly with clean water after cleaning.

Recommended Practices

Clean the membrane periodically so dirt and debris do not remain on the surface.
Use mild liquid dish soap, water, and a soft-bristled scrub brush.
Rinse thoroughly with clean water after every cleaning.

What to Avoid

Leaving dirt and debris on the membrane, where mildew or algae can grow.
Expecting the fungicide to stop growth in surface dirt. It helps prevent spores from penetrating the membrane; it cannot stop growth in debris on top of it.

IMPORTANT: Routine cleaning is necessary because mildew or algae can grow in dirt and debris on the membrane surface. Periodic cleaning with mild liquid dish soap, water and a soft-bristled scrub brush, followed by thorough rinsing, will help keep the DeckRite membrane looking new.

TB-005 Official Technical Bulletin

Rugs, Mats & Furniture Feet

Material compatibility guidelines for DeckRite and MariDeck PVC surfaces

Open Official PDF

Technical Scope & Advisory

DeckRite and MariDeck membranes are PVC-based products engineered for outdoor exposure. Materials placed directly on the surface must also be compatible with PVC. Rubber-based products, including EPDM and neoprene, can interact with the membrane and may cause discoloration, staining or long-term degradation.

Three-Step Verification Before Placing Items on Vinyl

Check backing, feet and support materials before placement.

Confirm the manufacturer identifies the product as compatible with PVC or vinyl surfaces.

When compatibility is uncertain, contact supplier or DeckRite Technical Services before use.

Recommended Practices

Unbacked rugs or mats
Nylon or plastic feet and bases under furniture legs
Products whose manufacturer confirms PVC/vinyl compatibility
Supplier-approved protective mats for grill areas (verify backing before placing)

What to Avoid

Rubber-backed rugs or mats directly on vinyl
Rubber feet, pads or bases on patio furniture
Grill mats or protective pads with unknown or rubber backing
Continuous contact with any unverified rubber/plasticizer-leaching material

IMPORTANT: Material compatibility should be confirmed before prolonged surface contact. Rubber plasticizers can cause irreversible yellowing or surface marks on PVC membranes.

TB-006 Official Technical Bulletin

Cold & Wet Weather Installation Guidelines

Field requirements for bonding DeckRite vinyl membrane in cold, damp or changing weather conditions

Open Official PDF

Technical Scope & Advisory

Cold or wet conditions can reduce adhesive transfer, slow cure time and increase the risk of condensation below the membrane. Confirm the substrate, humidity and dew point before installation and maintain proper conditions until adhesive cure.

Critical Field Installation Limits

Field Parameter	Required Specification / Threshold
Ambient Air Temperature	40°F (5°C) and rising
Deck Surface Temperature	40°F (5°C) and rising
Wood Substrate Moisture	Below 20% moisture content
Substrate Surface Condition	Clean, dry, completely frost-free
Dew Point Margin	Surface must be at least 5°F (3°C) above dew point

Recommended Practices

Measure surface temperature, humidity and calculate dew point before spreading adhesive.
Field Rule: Deck surface must remain at least 5°F (3°C) above dew point during application and cure.
Temporary Enclosure: When below limits, enclose the deck to the ground and heat the entire envelope.
One Warm Environment: Keep both above and below the substrate at uniform temperature to prevent vapor drive.
Store adhesives in heated space (65°F–75°F) before use.

What to Avoid

Installing over wet plywood, frost, dew, or standing water.
Installing when temperatures are expected to fall below dew point or freezing before adhesive cures.
Heating only one side of the deck (causes moisture vapor to drive through plywood joints into adhesive).
Trapping ambient humidity or frost under unbonded membrane.

CRITICAL FIELD RULE: Do not install unless deck surface temperature stays at least 5°F (3°C) above the calculated dew point throughout application and adhesive cure.

Field Instruction

Installation Video Series

Complete step-by-step contractor video series covering deck substrate preparation, layout, adhesive application, and hot-air seam welding.

Part 1

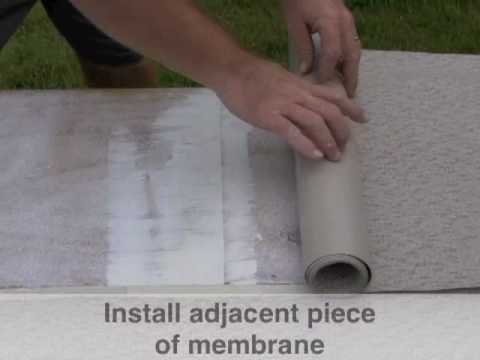

Overview of Installation

Introduction and walkthrough of the full 4-part installation series for DeckRite vinyl membrane over wood substrates.

Watch on YouTube

Part 2

Prepping The Surface

Wood substrate preparation: patching joints and knotholes with leveling compound, sanding smooth, and cleaning for maximum adhesion.

Watch on YouTube

Part 3

Pre-Install Process

Installing PVC coated metal drip-edge, siding removal, and flashing vertical wall turn-ups before laying out the membrane.

Watch on YouTube

Part 4

Installing The Membrane

Membrane layout, precision trim cuts, adhesive application methods, and preparing overlap margins for seam welding.

Watch on YouTube

Part 5

Hot Air Welding Explained

Hot air welder temperature/speed settings and technique for welding the overlap into a 100% monolithic waterproof seam.

Watch on YouTube

System Overview

Why Choose DeckRite?

Overview of the DeckRite waterproof vinyl decking system, performance benefits, and long-term warranties.

Watch on YouTube

ASTM Certified Independent Laboratory Testing

Material Physical Properties

DeckRite 50 mil and 60 mil 3-ply flexible PVC membrane physical test results under standardized ASTM protocols.

Physical Property	Test Standard / Method	DeckRite Specification / Result
Color	n/a	Sahara Tan, Slate Gray, Gray Storm, Tropical Cream, Lakewood Marble, Tuscany Sand, Harvest, Riverstone
Width	ASTM D751	68"
Thickness	ASTM D751	0.050" / 0.060"
Weight	ASTM D751	42.5 oz/yd²
Tensile strength (w / f)	ASTM D412A	165 / 156 lb/inch
Elongation @ break (w / f)	ASTM D412A	32% / 38%
Abrasion resistance	Tabor, CS10, 1000g, 1500 cycles	Pass
Sulphide stain	GM9069P	No stain
Light stability	SAE J1885 Xenon 1036 kJ	Pass
Low-temp impact (−10°F / −20°F / −40°F)	ASTM D1790	100% / 40% / 0%
Heat aging (7 days @ 158°F)	LP463LB-13-01	No detrimental effects
Shrinkage 24 h @ 175°F (w / f)	SAE J883	−0.8% / 0.3%

Need specific architectural submittals or test documentation?

Contact DeckRite LLC Technical Services at (888) 450-DECK (3325) or DeckRitesupport@deckrite.com.

Contact Technical Support
