Technical Data
Written Installation Instructions
DeckRite MD101 Water Based Adhesive MSDS
DeckRite MD102 Solvent Based Adhesive MSDS
Standard Detail Drawings:

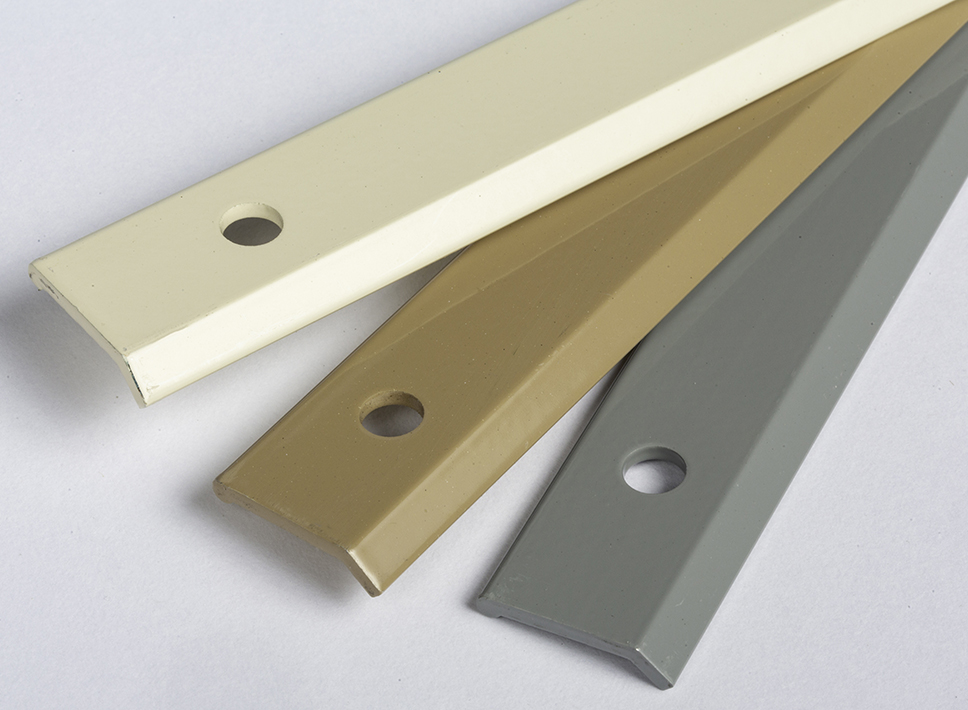

DR-101 Edge Termination Detail | Picture of Term Bar

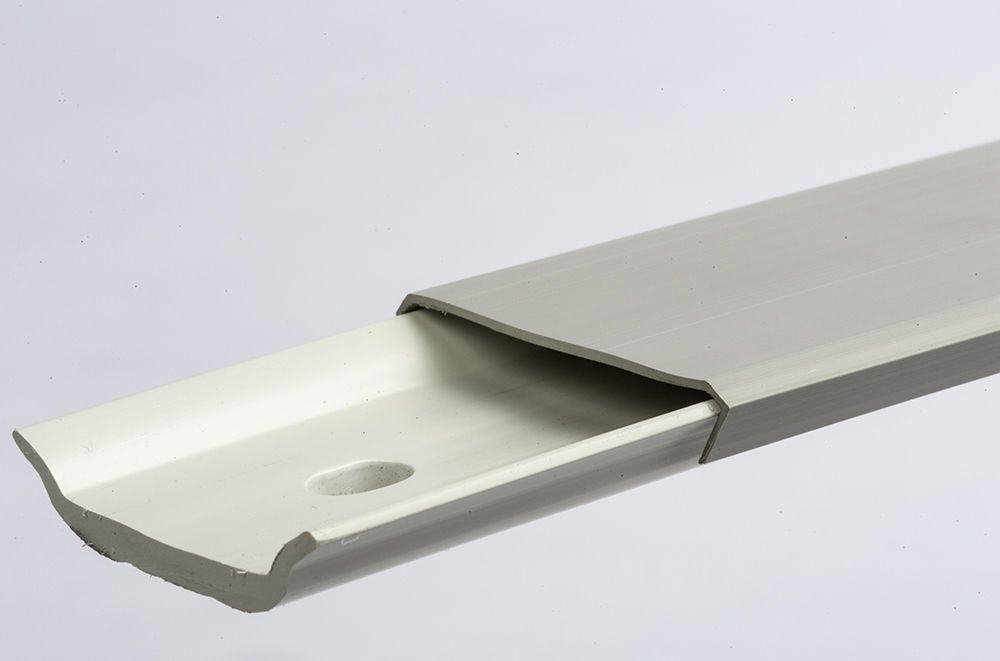

DR-103 Compression Bar with Cover | Picture of Fascia Bar
DR-105 High Parapet Wall Flashing
DR-106 Typical Drain Flashing Detail
DR-107 Flashing Detail: Tie-In To Shingles
DR-108 Waterproofing of Handrail Supports

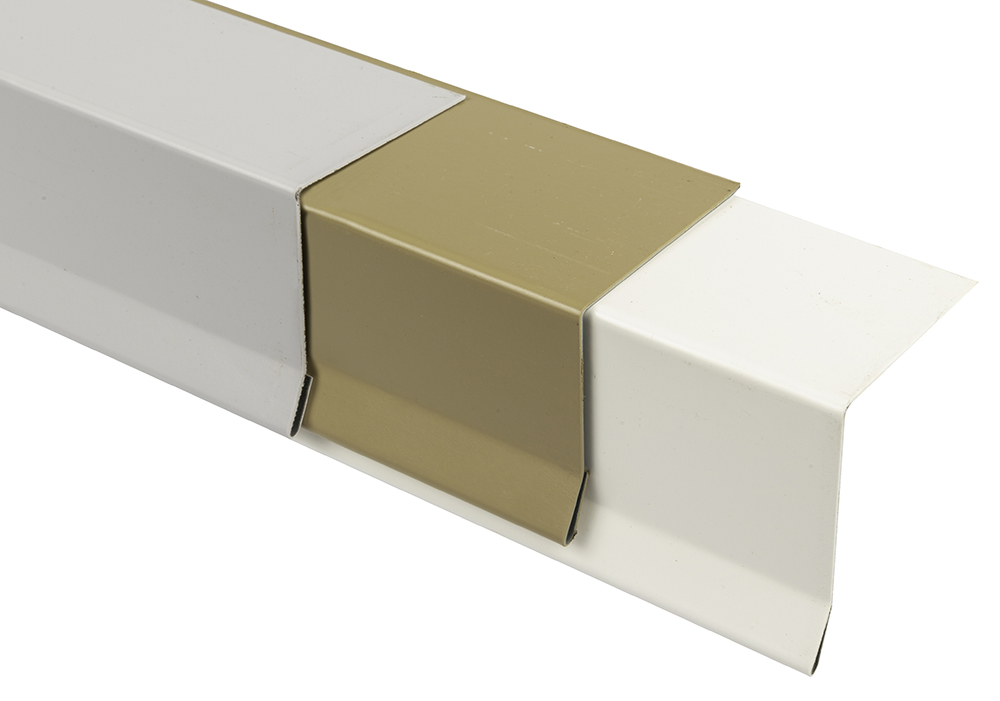

DR-109 Coated Metal Drip Edge | Picture of Drip Edge
DeckRite Material Physical Properties Comparison
| Physical Property | Unit | Test Method | DeckRite | |||
|---|---|---|---|---|---|---|
| COLOR | Sahara Tan, Slate Gray, Tropical Cream, Lakewood Marble, Tuscany Sand |
|||||
| WIDTH | inches | ASTM D751 | 68" | |||
| THICKNESS | inches | ASTM D751 | 0.050 0.060 |
|||
| WEIGHT | oz/yd2 | ASTM D751 | 42.5 | |||
| TENSILE STRENGTH | w f |
lb/inch lb/inch |
ASTM D412A ASTM D412A |
165 156 |
||
| ELONGATION @ BREAK | w f |
% % |
ASTM D412A ASTM D412A |
32 38 |
||
| ABRASION RESISTANCE Tabor, cs10, 1000g. 1500 cycles |
visual | 8-6-97 | pass | |||
| SULPHIDE STAIN | visual | GM9069P | no stain | |||
| LIGHT STABILITY, XXENON 1036KJ* |
visual | SAE J1885 | pass | |||
| LOW TEMP. IMPACT % of 10 test specimens at each temp. that did not crack |
-10F -20F -40F |
% % % |
ASTM D1790 ASTM D1790 ASTM D1790 |
100 40 0 |
||
| RESISTANCE TO HEAT AGING 7 DAYS @ 158F |
visual | LP463LB- 13-01 |
NDE | |||
| SHRINKAGE 24 h @175 F | w f |
% % |
SAE J883 SAE J883 |
-0.8 0.3 |
||
|
||||||
